Magento 2: Adding Custom Shipping Address Field Tutorial (Part 3 - Order Placement and Enhancements)
Challenges
We now have our custom attribute data stored in the quote address, but we need to configure Magento to convert this data into the sales order address. Additionally, there are several minor issues to address:
- Attempting to save the address to the address book generates an error
- Creating an account after guest checkout does not handle our custom attribute
- Attempting to place an order as a guest generates an error
Step 1. Introduce sales_order_address.custom_field Column
Update the db_schema.xml file:
<?xml version="1.0"?>
<schema xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Setup/Declaration/Schema/etc/schema.xsd">
<table name="quote_address">
<column xsi:type="varchar" name="custom_field" nullable="true" length="255" comment="Custom Address Field"/>
</table>
<!-- add new column -->
<table name="sales_order_address">
<column xsi:type="varchar" name="custom_field" nullable="true" length="255" comment="Custom Address Field"/>
</table>
</schema>
Run the database upgrade:
php bin/magento setup:upgrade
In theory, there is a class responsible for copying data from quote_address to sales_order_address called \Magento\Quote\Model\Quote\Address\ToOrderAddress, which utilizes \Magento\Framework\DataObject\Copy. We need to add copy instructions to the fieldset.xml file for sales_convert_quote_address.
File: etc/fieldset.xml
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Data/etc/fieldset.xsd">
<scope id="global">
<fieldset id="sales_convert_quote_address">
<field name="custom_field">
<aspect name="to_order_address"/>
</field>
</fieldset>
</scope>
</config>
However, this approach does not work as expected, so I added an additional plugin to this class and handled it manually.
File: etc/di.xml
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<type name="\Magento\Checkout\Block\Checkout\AttributeMerger">
<plugin name="sn_fix_data_scope" type="SergiyNezbritskiy\CustomAddressField\Plugin\Checkout\AttributeMergerPlugin"/>
</type>
<type name="\Magento\Quote\Model\Quote\Address">
<plugin name="sn_convert_extension_attributes" type="SergiyNezbritskiy\CustomAddressField\Plugin\Quote\AddressPlugin"/>
</type>
<!-- added new plugin -->
<type name="\Magento\Quote\Model\Quote\Address\ToOrderAddress">
<plugin name="sn_quote_to_order" type="SergiyNezbritskiy\CustomAddressField\Plugin\QuoteAddressToOrderAddress\ToOrderAddressConverterPlugin"/>
</type>
</config>
File: Plugin/QuoteAddressToOrderAddress/ToOrderAddressConverterPlugin.php
<?php
declare(strict_types=1);
namespace SergiyNezbritskiy\CustomAddressField\Plugin\QuoteAddressToOrderAddress;
use Magento\Quote\Model\Quote\Address;
use Magento\Quote\Model\Quote\Address\ToOrderAddress;
use Magento\Sales\Api\Data\OrderAddressInterface;
class ToOrderAddressConverterPlugin
{
/**
* @see ToOrderAddress::convert
*/
public function afterConvert(ToOrderAddress $subject, OrderAddressInterface $result, Address $object): OrderAddressInterface
{
/** @var \Magento\Sales\Model\Order\Address $result */
$result->setData('custom_field', $object->getData('custom_field'));
return $result;
}
}
Clean the cache before proceeding:
php bin/magento cache:clean
Verification
At this point, you should be able to see your attribute on the order view page and in the sales_order_address.custom_field column.
Step 2. Fix Saving Address to Address Book as a Registered User
Again, we need to configure the \Magento\Framework\DataObject\Copy object.
File: etc/fieldset.xml
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Data/etc/fieldset.xsd">
<scope id="global">
<fieldset id="sales_convert_quote_address">
<field name="custom_field">
<aspect name="to_order_address"/>
<aspect name="to_customer_address"/><!-- this line has been added -->
</field>
</fieldset>
</scope>
</config>
Verification
At this point, the option to save the address to the address book should work correctly for both shipping and billing addresses.
Step 3. Fix Placing Order as a Guest User
Now let’s address the guest user scenario. For guest users, the data from quote address to sales order address is copied from custom attributes. Let’s add a plugin to set them whenever they are called.
File: Plugin/Quote/AddressPlugin.php
/**
* @see \Magento\Quote\Model\Quote\Address::getCustomAttributes
*/
public function afterGetCustomAttributes(\Magento\Quote\Model\Quote\Address $subject, array $customAttributes): array
{
if (!array_key_exists('custom_field', $customAttributes)) {
$customAttributes['custom_field'] = new \Magento\Framework\Api\AttributeValue([
'attribute_code' => 'custom_field',
'value' => $subject->getData('custom_field'),
]);
}
return $customAttributes;
}
Verification

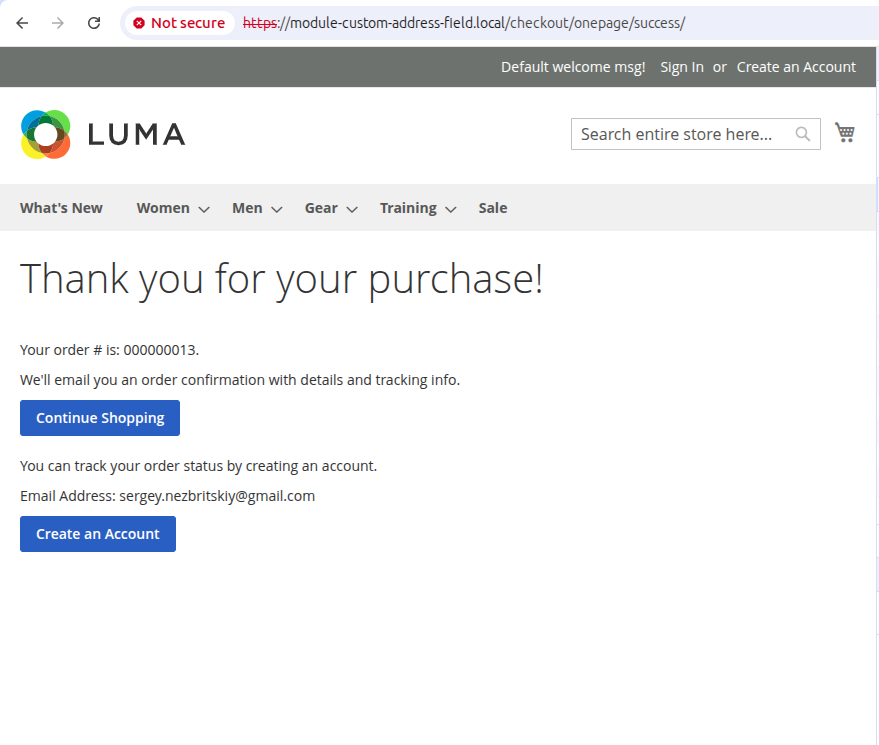

At this point, you should be able to see the success page after placing the order.
Step 4. Fix Creating Account After Guest Order
The final issue to address is the “Create an Account” button on the success page. Currently, after clicking that button and attempting to register an account, we will receive an error stating that “Custom Field” is a required value.
How does this work? When we click the “Create an Account” button, Magento saves customer data (including address data) into session storage. You can see this in \Magento\Customer\Model\Delegation\Storage::storeNewOperation, specifically in the line $this->session->setCustomerFormData($customerData). What actually happens is that Magento serializes the object and then unserializes it when we submit the registration form by calling the non-existent getDelegatedNewCustomerData method from the Session object. Our custom data gets lost during serialization. Let’s fix this by adding one more plugin.
First, we need to configure Magento (the \Magento\Framework\DataObject\Copy object) on how to handle custom_field when copying sales order address into customer address.
File: etc/fieldset.xml
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:Data/etc/fieldset.xsd">
<scope id="global">
<fieldset id="sales_convert_quote_address">
<field name="custom_field">
<aspect name="to_order_address"/>
<aspect name="to_customer_address"/>
</field>
</fieldset>
<!-- This section has been added -->
<fieldset id="order_address">
<field name="custom_field">
<aspect name="to_customer_address"/>
</field>
</fieldset>
</scope>
</config>
File: etc/di.xml
<?xml version="1.0"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:noNamespaceSchemaLocation="urn:magento:framework:ObjectManager/etc/config.xsd">
<type name="\Magento\Checkout\Block\Checkout\AttributeMerger">
<plugin name="sn_fix_data_scope" type="SergiyNezbritskiy\CustomAddressField\Plugin\Checkout\AttributeMergerPlugin"/>
</type>
<type name="\Magento\Quote\Model\Quote\Address">
<plugin name="sn_convert_extension_attributes" type="SergiyNezbritskiy\CustomAddressField\Plugin\Quote\AddressPlugin"/>
</type>
<type name="\Magento\Quote\Model\Quote\Address\ToOrderAddress">
<plugin name="sn_quote_to_order" type="SergiyNezbritskiy\CustomAddressField\Plugin\QuoteAddressToOrderAddress\ToOrderAddressConverterPlugin"/>
</type>
<!-- This section has been added -->
<type name="\Magento\Customer\Model\Session">
<plugin name="sn_restore_custom_attributes" type="SergiyNezbritskiy\CustomAddressField\Plugin\Session\OrderToCustomerPlugin"/>
</type>
</config>
File: Plugin/Session/OrderToCustomerPlugin.php
<?php
declare(strict_types=1);
namespace SergiyNezbritskiy\CustomAddressField\Plugin\Session;
use Magento\Customer\Model\Session;
class OrderToCustomerPlugin
{
/**
* @see Session::__call
*/
public function after__call(Session $subject, mixed $result, string $method): mixed
{
if ($method === 'getDelegatedNewCustomerData') {
if (is_array($result) && array_key_exists('addresses', $result)) {
foreach ($result['addresses'] as &$address) {
$address['custom_attributes']['custom_field'] = $address['custom_field'];
}
}
}
return $result;
}
}
